PET Water Bottle Production Line

DKM offers a one-stop, fully automated PET water bottle production line solution, from PET preform molding, to water bottle blowing molding and bottle caps molding. DKM integrated water bottle production line combines high-performance PET bottle preform injection, bottle blow molding, and various auxiliary systems, specifically designed for large-scale, high-efficiency, and high-quality production of bottled water, beverages, cooking oil, and other liquid packaging. With outstanding stability, energy efficiency, and flexibility for various specifications, DKM PET Bottle production line is your reliable partner for enhancing market competitiveness.

Bottle Preform Injection System

The bottle preform injection system is the critical first step of the entire production process. Its quality directly determines the clarity, strength, and barrier properties of the final bottle. DKM provides a complete set of high-efficiency and precision preform injection solutions to ensure every preform has excellent molding quality.

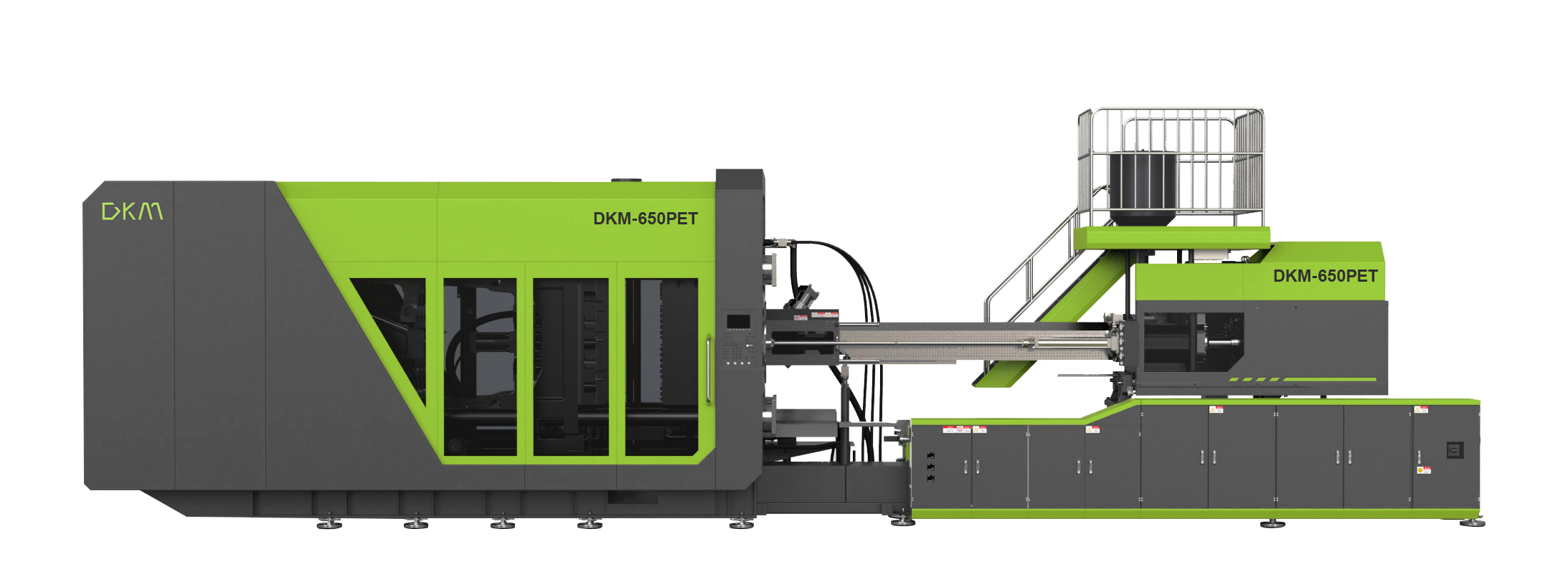

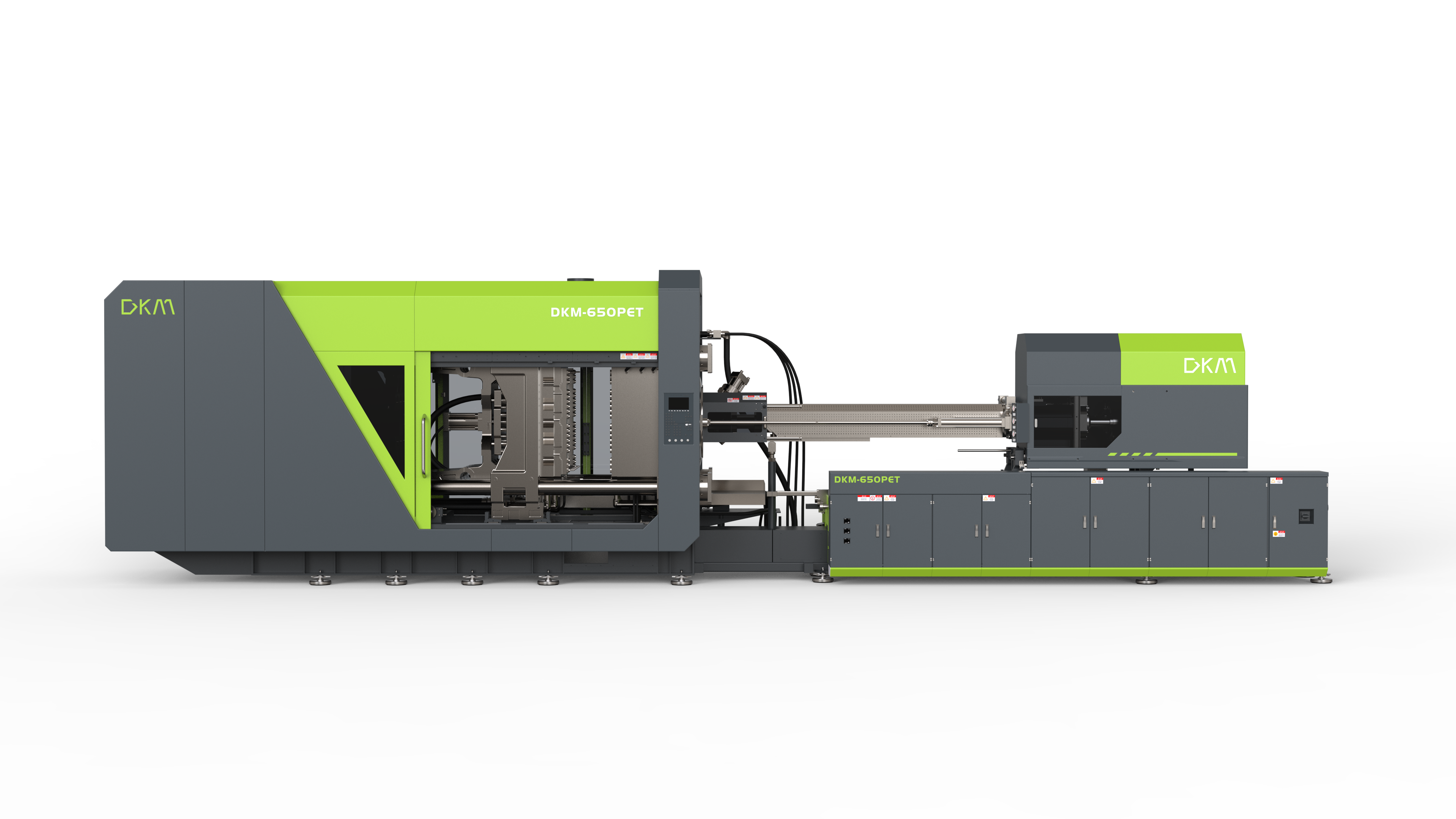

PEⅢ 650 PET Bottle Preform Injection Molding Machine

PET Bottle Preform Injection Molding Machine

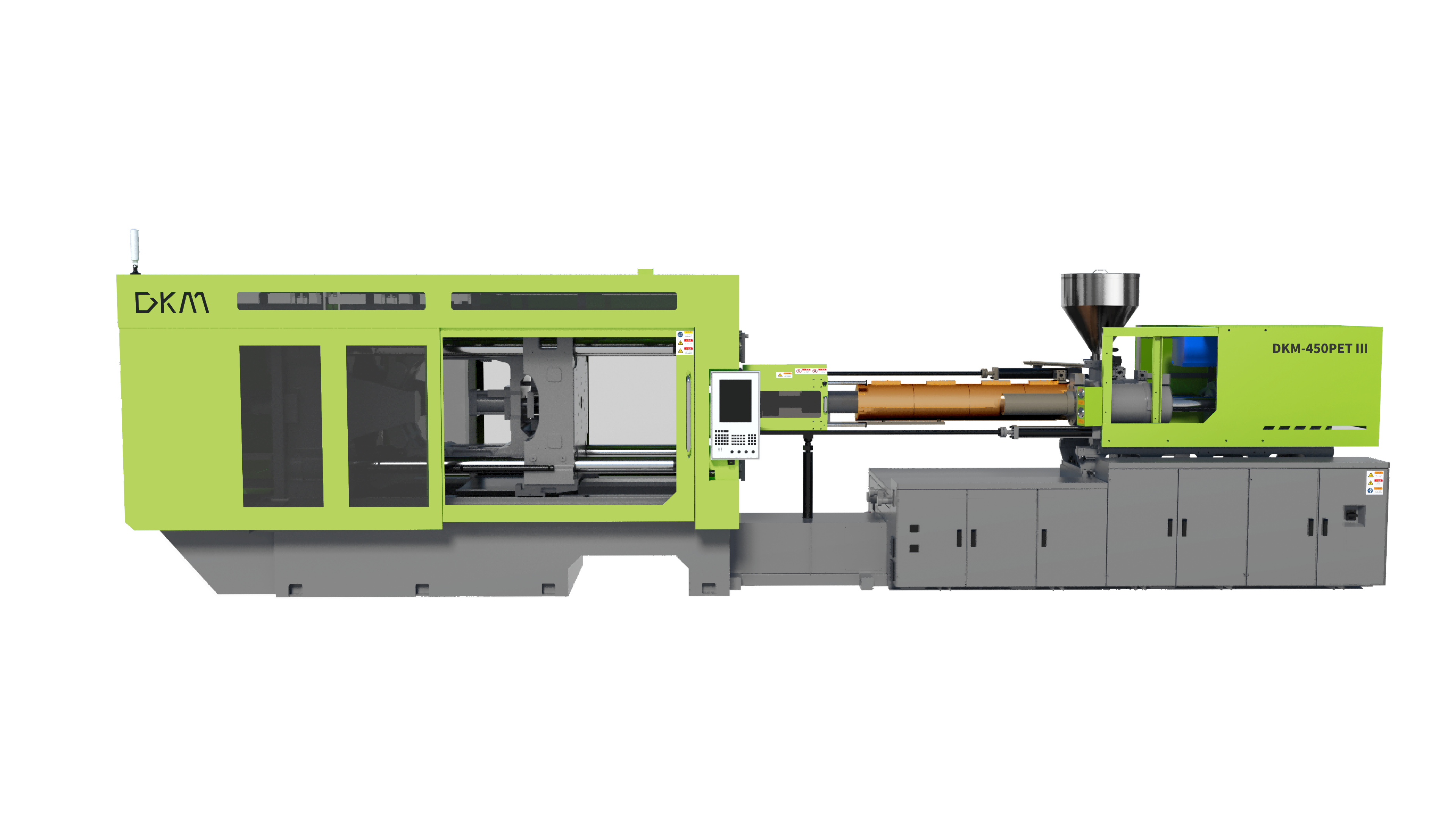

The DKM PET Preform Injection Molding Machine features an optimized injection unit and clamping system, ensuring uniform plasticization and stable molding of PET material even at high injection speeds. With high injection speed and high repeatability precision, it is the foundation for stable production with 144-cavity or even higher-cavity molds.

PET Bottle Preform Mould

PET Bottle Preform Mould is powered by SINOMOULD. SinoMould has 26 years PET preform mould manufacturing and developing experience, developed high-cavity preform molds utilize advanced hot runner technology and efficient cooling system design to minimize temperature variation between cavities, ensuring consistent preform weight and wall thickness. SinoMould has realized the standard production of preform mould with the cavities Nr. from 16 to 168. For the standard neck preform moulds, 48, 72, 96 cavities can delivered within 2 weeks, providing reliable support for mass production.

Preform Molding Auxiliary Machines

A complete preform molding system relies on efficient and stable auxiliary machines. They provide dry, clean raw materials, stable cooling, and power support for the injection molding machine, which is key to ensuring continuous and automated operation of the production line.

PET Preform Molding Automatic Drying & Feeding System

The automatic drying and feeding system continuously supplies fully dried PET material to the injection machine. As PET is highly sensitive to moisture, this system uses precise temperature control and dehumidification to ensure moisture content is minimized, fundamentally preventing issues like preform yellowing, bubbles, or strength reduction caused by damp raw materials.

PET Preform Molding Centralized Chilling Water Supply System

The centralized chilling water supply system provides stable, constant-temperature cooling water for multiple injection machines and molds. Through precise temperature control, it significantly shortens the preform molding cycle, improves production efficiency, and ensures uniform preform crystallinity and stable quality.

Centralized Clean Air Supplying System

The centralized clean air supplying system delivers stable, dry, oil-free, and constant-pressure compressed air for pneumatic components (such as robots and mold movements) throughout the workshop. This reduces equipment failure rates, ensures movement precision, and extends equipment service life.

Preform Molding Out-Mould Cooling System

The out-mold cooling system is responsible for removing the hot preforms from the mold and further cooling them to set their shape. This is crucial for high-cavity production, as it effectively frees up mold occupancy time, further increasing production capacity.

Out-Mould Preform Pick Up &.Cooling Robot

The DKM out-mold preform pick-up and cooling robot accurately extracts preforms from the mold and transfers them to the cooling conveyor or cooling station. Its movements are high-speed and smooth, and it can be integrated with a vision inspection system for preliminary screening of defective products.

Out-Mold Preform Pick Up &.Cooling Conveyor Belt

The cooling conveyor belt receives preforms from the robot and transports them at a uniform speed to the collection point. During transportation, the preforms cool naturally in a controlled environment, preventing deformation caused by rapid or uneven cooling.

Bottle Blow Molding System

The blow molding system transforms the molded preforms into the final desired bottle shapes through heating, stretching, and blowing processes. DKM blow molding machines are renowned for their high efficiency, low energy consumption, and excellent control over bottle wall thickness.

PET Bottle Blow Molding Machines

DKM’s fully automatic PET blow molding machines are suitable for producing various specifications of water bottles and beverage bottles. They feature advanced linear heating technology for uniform preform heating and a patented stretch-blow mechanism that ensures excellent bottle verticality and pressure resistance.

Bottle Blow Molding Machine- Small Neck Series

Designed specifically for producing small-capacity water and beverage bottles under 500ml, this machine boasts a very high production cycle rate to meet the huge market demand for small packaging bottles.

Bottle Blow Molding Machine- Wide Mouth Series

Specifically designed for producing wide-mouth jars and bottles, such as those for juice and sauces. Its special molds and blowing technology perfectly form containers with larger openings, ensuring a smooth, round finish and excellent sealability.

Bottle Blow Molding Machine- 5 Gallon Series

Designed for the production of large-capacity 5-gallon water bottles, this machine features high clamping force and blow pressure to ensure uniform wall thickness, high pressure resistance, and impact strength, making it ideal for the bottled water dispenser market.

Bottle Blow Molding Machine- Oil Series

Suitable for producing cooking oil bottles. This machine places special emphasis on bottle clarity and sealability to ensure the safe storage of oil. It can produce shaped oil bottles with handles to meet diverse market demands.

Bottle Blow Mould

Different from molds that specialize in preform injection, SINOMOULD’s bottle molds focus on the final container molding, dedicated to efficiently and precisely blow-molding pre-made preforms into various high-performance finished packaging bottles. We deeply understand the value of bottle design for brands, which is why in mold design, we integrate a profound understanding of material characteristics with exquisite processing techniques to ensure the produced bottles have uniform wall thickness, an attractive appearance, and a stable structure.

Cap Molding System

The cap system delivers integrated solutions from preform molding to post-processing. DKM provides injection molding technologies for cap production, meeting diverse customer requirements for cap types, cost efficiency, and production performance.

Cap Injection Molding Machine

The cap molding system provides a complete solution from cap forming to post-processing. DKM offers both injection and compression molding technologies to meet different customer requirements for cap type, cost, and efficiency.

Cap Injection Molding Mould

Our cap injection molds are manufactured from high-quality mold steel, featuring high hardness and precision. They support various customized designs, including single or multi-cavity, hot runner or cold runner systems. Combined with scientific analysis of runner and cooling systems, these molds effectively ensure consistent plastic filling, reduce volumetric shrinkage, and minimize warpage deformation.

Cap Compression Molding Machine

The cap compression molding machine is ideal for producing high-performance caps (e.g., for carbonated beverages). Compression-molded caps have low internal stress, excellent sealing performance, and offer material savings.

Cap Compression Molding Mould

SINOMOULD utilizes mature compression molding technology, specifically designed for the large-scale production of thermoset plastic and high-performance thermoplastic caps.

Cap Flanging Machine

This machine is used to flange the molded cap preforms, forming structures like tamper-evident bands that interface with the bottle neck. It features a high degree of automation and ensures precise and consistent flanging dimensions.

Cap Cutting Machine

This machine is used to separate interconnected caps produced by multi-cavity molds. It offers high cutting speed and creates smooth, clean cuts without damaging the caps, making it a crucial piece of post-processing equipment in automated production lines.
